BW 30.18 230 V | Hugo Müller
Panel-mount-hour hours meter, BW 30.18 230 V
Order No.: 30K3340
EAN: 4022709203069
MPN:
BW 30.18 230 V
20306
Unit Price (€ / pc.)
20.1705 € *
Available: 24 pcs.
Leadtime: 1 Week **
Total Price:
20.17 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1705 €
5 pcs.
18.9686 €
15 pcs.
18.2308 €
50 pcs.
17.4216 €
*incl. VAT plus shipping costs
**Subject to prior sale

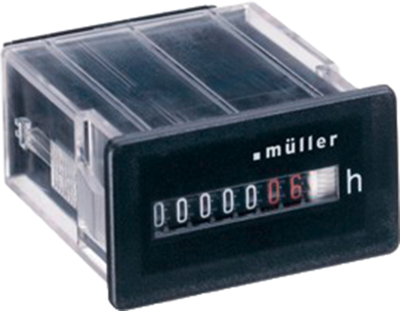

Panel operating hours counters, type Müller BW 30.18.

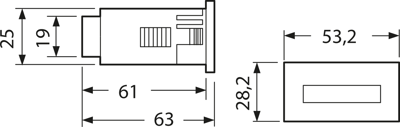

With integrated latching spring. For panel mounting. Without zero reset button; Front panel: 53 x 28 mm. Mounting cutout: 50 x 25 mm. Counter capacity: 99.999 h. Reading precision: 0.01 h. Digit height: 4.4 mm. Digit color: white, red decimals. Run indication: high-speed. Operational voltage: 230 V at 50 Hz. Voltage tolerance: ±15 %. Power consumption: approx. 1.5 VA. Operating temperatures: –15 to +50 °C. Case: self-extinguishing thermoplastic, black. Connection: universal, for screw terminals and 6.3 x 0.8 mm tab terminals. Degree of protection (DIN EN 60529): front panel IP 54. Safety class: II.
Type: BW 30.18, operating hours counter
Technical specifications
| Connection | screw/plug-in connection | |
| Width | 53.2 mm | |
| Installation depth | 63 mm | |
| Accuracy | 0.01 h | |
| Height | 28.2 mm | |
| Power consumption | 110 mW | |
| Assembly | built-in mounting | |
| Degree of protection (IP) | IP65 | |
| Voltage | 230 VAC | |
| Max. hour counts | 99999 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
