BW 70.18 24 V | Hugo Müller
Hours meter, BW 70.18 24 V
Order No.: 30K3375
EAN: 4022709216540
MPN:
BW 70.18 24 V
21654
Unit Price (€ / pc.)
19.7659 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
19.77 € *
Price list
Quantity
Price per unit*
1 pcs.
19.7659 €
5 pcs.
17.2669 €
*incl. VAT plus shipping costs
**Subject to prior sale

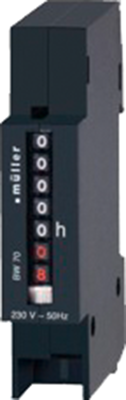

Operating hours counters, type Müller BG../BW.
For installation in distribution cabinets. With snap-on fastener for 35 mm DIN rails. Slim design with a width of only 17.5 mm; Connection: terminals with wire protection. Digit height: 2.6 mm. Digit color: white, red decimals. Case: self-extinguishing thermoplastic, black. Dimensions (distribution cabinet cutout): 45 x 17.5 mm.
For AC voltage, type BW 70.18.
Counter capacity: 99.999 h. Reading precision: 0.01 h. Active state display: high-speed. Power consumption: approx. 1.5 VA. Ambient temperatures: –15 to +55 °C. Degree of protection: IP 50. Safety class: II.
Type: BW 70.18, 24 VAC/50 Hz

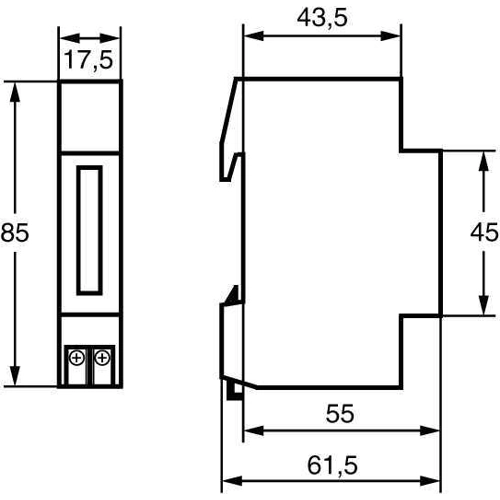

Technical specifications
| Connection | Schraubanschluss | |
| Width | 17.5 mm | |
| Installation depth | 61.5 mm | |
| Accuracy | 0,01 h | |
| Height | 85 mm | |
| Power consumption | 1.5 W | |
| Assembly | DIN-Schiene | |
| Degree of protection (IP) | IP50 | |
| Voltage | 230 VAC | |
| Max. hour counts | 99999 h |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90291000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
