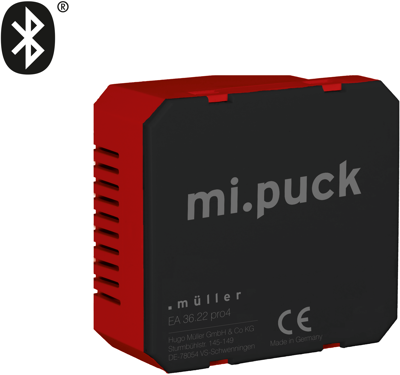

EA 36.22 PRO4 | Hugo Müller

Overview

Universal control

- blind control or

- Time switch (weekly or astro)

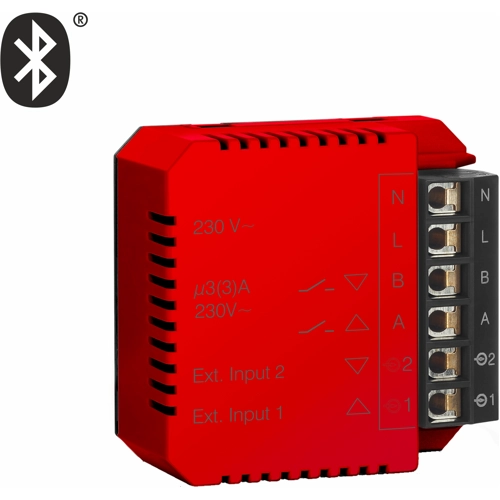

Flush-mounted fitting

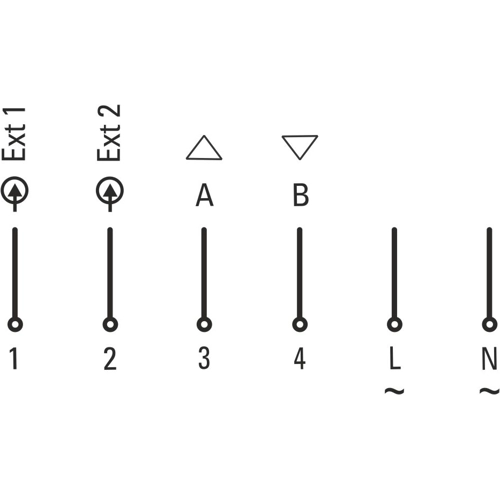

2 output channels 230 V~

2 inputs 230 V~ for push-buttons or switches

Switching capacity 6 A in total

Protection against overheat

Fully automatic daylight saving time

approx. 5 years reserve

Integrated Bluetooth

Programmable and controllable via app (iOS and

Android)

Up to 3 mobile devices can have access simultaneously

Up to 50 m range

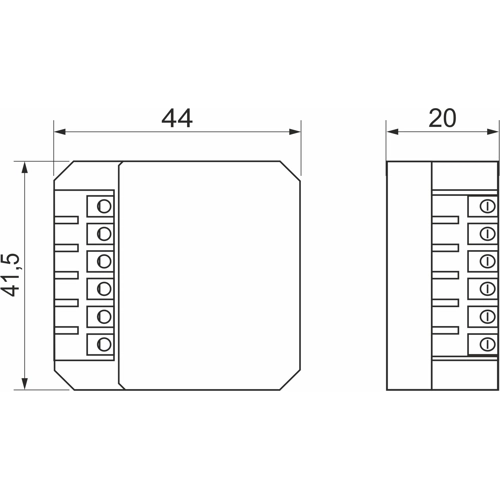

Compact housing

Blind control / roller shutter control

2 output channels UP / DOWN 230 V~

2 memory locations per day

3 modes of operation: automatic, manual, holiday

Movement duration for DOWN adjustable

Limitation of switching times adjustable

Option reverse movement pulse

Time switch weekly

2 output channels 230 V~

100 memory locations

Minimum interval 1 min.

Extra switching times ON, OFF and pulse by date and

time

Permanent by date and time / holiday function

Output functionality adjustable and depending on input

signal:

- Change function between ON and OFF

- Timer function (e.g. staircase lighting, ventilation)

Option advance warning (application staircase lighting

timer)

Time switch astro

2 output channels 230 V~

100 memory locations

Minimum interval 1 min.

Offset function = for each switching time a difference

(±90 min.) to the Astro time can be programmed

Permanent by date and time / holiday function

Output functionality adjustable and depending on input

signal:

- Change function between ON and OFF

- Timer function (e.g. staircase lighting, ventilation)

Option advance warning (application staircase lighting timer)
