Name: ESD Assembly frame, 510 x 280 mm, PCSA-2N
Brand: ideal-tek
SKU: 13L2872
Price: 351.05 EUR
Availability: InStock

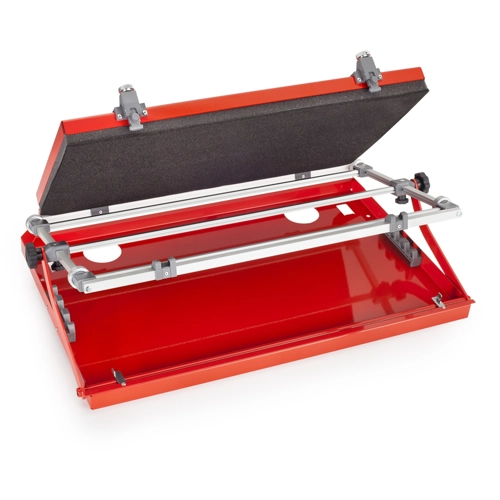

ESD Assembly frame, 510 x 280 mm, PCSA-2N

Order No.: 13L2872

EAN: 7640144716431

MPN:

PCSA-2N

Series: PCSA

Image may differ

Key Specification:

Version Assembly frame

Size 510 x 280 mm

ESD protection Yes

Show 3 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

351.05 € *

Available: 3 pcs.

Leadtime: 4 Weeks **

Total Price:

351.05 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Printed circuit holder PCSA-2 with ESD Foam. 510mmx220mm

Technical specifications

	Version	Assembly frame
	ESD protection	Yes
	Size	510 x 280 mm

Show similar products 0

Download

Declaration of Conformity - EN Declaration of Conformity

Operating instructions - EN Operating instructions

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	IT
Customs tariff number	73262000

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
