PS3V-030AF05P | IDEC

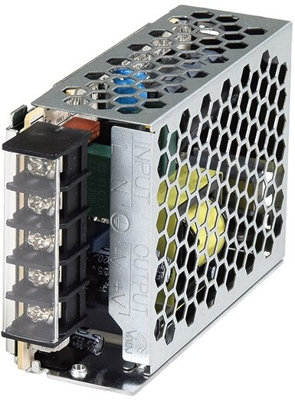

AC/DC converter, 100-240 VAC, 30 W, 1 output, 5 VDC, PS3V-030AF05P
Order No.: 32C3014
EAN: 4099891767020
MPN:
PS3V-030AF05P
Unit Price (€ / pc.)
39.1153 € *
Available: 0 pcs.
Leadtime: On Request **
AC/DC converter, PS3V-030AF05P, IDEC
The PS3V-030AF05P is a compact and efficient switching power supply suitable for downsizing of equipmet. Operates in a wide temperature range from -25 to +70°C. Suitable for use in a wide temperature range from cold to hot environmet.
Applications
- Warehouse storage
- Control panels in facilities such as building
- Safety equipment at station platforms
- Control panels at plant factories
- Semiconductor manufacturing equipment
- Mold injection machines
- Logistics and transport facilities
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 5 VDC | |
| Ausgangsstrom | 6 A | |
| Bauform | Chassismontage | |
| Breite | 34.5 mm | |
| Eingangsspannungsbereich | 100-240 VAC | |
| Höhe | 68.5 mm | |
| Länge | 95.5 mm | |
| Leistung | 30 W | |
| Wirkungsgrad | 77 % |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85044095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
