HW1Z-P1F2PQ4R | IDEC
LED buzzer combination, Ø 30 mm, 70 dB, 2450 Hz, red, 24 VDC, HW1Z-P1F2PQ4R
Unit Price (€ / pc.)
52.8003 € *
Available: 8 pcs.
Leadtime: 14 Weeks **
Total Price:
52.80 € *
Price list
Quantity
Price per unit*
1 pcs.
52.8003 €
10 pcs.
50.6107 €
50 pcs.
48.4092 €
100 pcs.
46.2434 €
*incl. VAT plus shipping costs
**Subject to prior sale

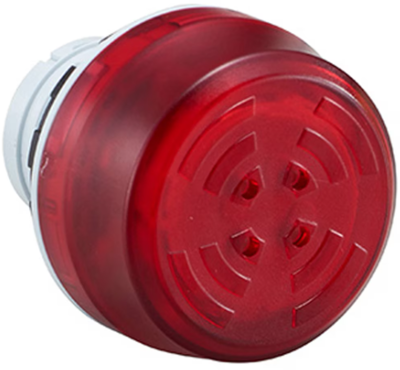

Illuminated buzzer, HW1Z-P1F2PQ4R, IDEC
ø22mm Illuminated buzzer, Finger safe (IP40) Push-In terminals, Super bright LED illumination, IP65 From Front and IP54 with terminal rubber boot.
Technical specifications
| Version | LED-Summer-Kombination | |
| diameter | 30 mm | |
| Farbe der Beleuchtung | rot | |
| Colour | rot | |
| Frequency | 2450 Hz | |
| Height | 17.6 mm | |
| Rated current | 18 mA | |
| Sound pressure level | 70 db | |
| Degree of protection (IP) | IP40/IP65 | |
| Voltage | 24 VDC |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
