XW1E-LV413Q4R | IDEC
Emergency stop, turn/pull release, mounting Ø 22 mm, illuminated, 1 Form A (N/O) + 3 Form B (N/C), XW1E-LV413Q4R
Unit Price (€ / pc.)
36.5568 € *
Available: 0 pcs.
Leadtime: 13 Weeks **
Total Price:
36.56 € *
Price list
Quantity
Price per unit*
1 pcs.
36.5568 €
5 pcs.
34.8194 €
10 pcs.
32.7488 €
20 pcs.
30.9162 €
*incl. VAT plus shipping costs
**Subject to prior sale

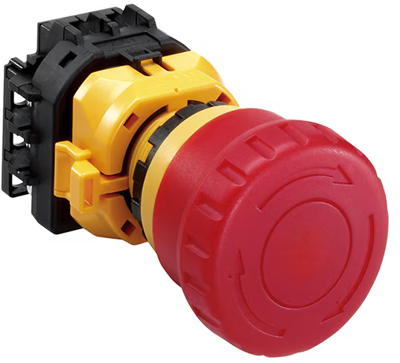

Emergency stop switch, XW1E-LV413Q4R, IDEC
Emergency stop switch Ø22 mm with Safe Break Action ensures all NC contacts open if the contact block is separated from the operator. New smooth button option resists dirt buildup and provides attractive appearance.
Features
- ISO13850: 2015 compliant
- Smooth button models also feature green mechanical status indicator
- Pushlock turn reset and push-pull functions built into same unit
- Direct opening action mechanism (IEC60947-5-5, IEC60947-5-1, Annex K)
- Degree of protection IP65 (IEC60529)
- UL NISD approved, c-UL approved, EN compliant
Technical specifications
| Type of mounting | Panelmontage | |
| illuminated | Yes | |
| Collar shape of the front frame | rund | |
| Installation diameter | 22 mm | |
| Contact function | rastend | |
| Resetting | Dreh-/Zieh-Entriegelung | |
| Latching switching function | 1 Schließer + 3 Öffner | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
