HE1G-L21SMB | IDEC
Enabling switch, 2 pole, yellow, unlit , IP65, HE1G-L21SMB
Unit Price (€ / pc.)
343.7434 € *
Available: 1 pcs.
Next delivery: 10 pcs. on 2025-02-13
Leadtime: On Request **
Total Price:
343.74 € *
Price list
Quantity
Price per unit*
1 pcs.
343.7434 €
10 pcs.
326.5360 €
50 pcs.
309.3167 €
100 pcs.
292.1212 €
*incl. VAT plus shipping costs
**Subject to prior sale

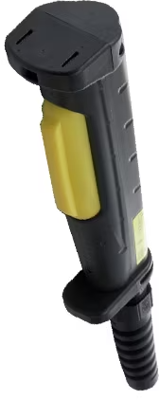

Enabling switch, HE1G-L21SMB, IDEC
The HE1G-L21SMB is a grip switch E-Stop solder with 3-position, 2 contacts, yellow silicon rubber boot, and terminal block. The distinctive tactile feedback makes it easy to know the current position of the switch. Light operating force ideal for long-hour operation.
Features
- Ergonomically-designed OFF-ON-OFF operation
- Two contacts are provided so that even if one contact fails due to welding or short-circuit, the other contact can disable machine operation
- Monitor switch is direct opening action
Technical specifications
| Connection | screw connection | |
| illuminated | No | |
| Actuator colour | yellow | |
| Pin number | 2 pole | |
| Latching switching function | latching | |
| Protection class | IP65 |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
