HE2B-M211PB | IDEC
Enabling switch, 2 pole, black, unlit , IP65, HE2B-M211PB
Unit Price (€ / pc.)
57.1557 € *
Available: 8 pcs.
Leadtime: 13 Weeks **
Total Price:
57.16 € *
Price list
Quantity
Price per unit*
1 pcs.
57.1557 €
10 pcs.
54.6329 €
50 pcs.
53.6333 €
100 pcs.
52.6337 €
*incl. VAT plus shipping costs
**Subject to prior sale

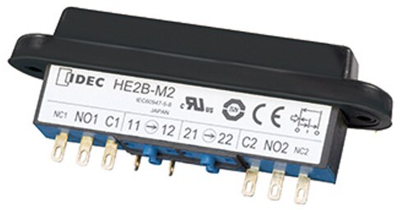

Enabling switch, HE2B-M211PB, IDEC
Enabling switch is ideal for installing in large teach pendants.
Features
- Ergonomically designed off-on-off operation
- Easy recognition of position 1 to 2 transition is made possible by a snap action switch
- Sufficient difference in operating force is provided for shifting from position 2 to position 3
- Low pressure is required to maintain position 2, allowing for longtime operation
- Reliable operation is assured even when the edge of the operator button is pressed
- The switch does not turn on while being released from position 3 (off) to position 1 (off)
- Two contacts are provided in a 3-position enabling switch so that even if one contact fails due to welding or short-circuit, the other contact can disable machine operation
- Protection IP65
Technical specifications
| Anschluss | Lötanschluss | |
| Bauform | rechteckig | |
| Bedruckt | No | |
| beleuchtet | No | |
| Farbe Betätiger | schwarz | |
| Polzahl | 2-polig | |
| Schutzart (Betätigungsseite) | IP65 | |
| Vandalengeschützt | No |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85365011 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
