HE3B-M2PB | IDEC

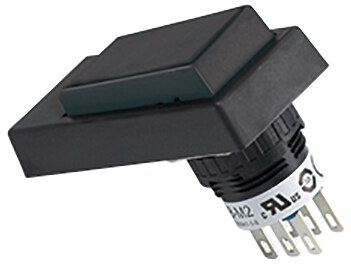

Enabling switch, 2 pole, black, unlit , IP65, HE3B-M2PB
Unit Price (€ / pc.)
44.9225 € *
Available: 8 pcs.
Leadtime: On Request **
Total Price:
44.92 € *
Price list
Quantity
Price per unit*
1 pcs.
44.9225 €
10 pcs.
43.1256 €
50 pcs.
42.4116 €
100 pcs.
41.6857 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enabling switch, HE3B-M2PB, IDEC
Rectangular operator part with ø16 mm mounting for easy installation and 2-contact 3-position enabling switch, ideal for installing in small teach pendants.
Features
- Ergonomically designed off-on-off operation
- Easy recognition of position 1 to 2 transition is made possible by a snap action switch
- Sufficient difference in operating force is provided for shifting from position 2 to position 3
- Low pressure is required to maintain position 2, allowing for longtime operation
- Reliable operation is assured even when the edge of the operator button is pressed
- The switch does not turn on while being released from position 3 (off) to position 1 (off)
- Two contacts are provided in a 3-position enabling switch so that even if one contact fails due to welding or short-circuit, the other contact can disable machine operation
- Protection IP65
Technical specifications
| Connection | solder connection | |
| Design | rectangular | |
| illuminated | No | |
| Actuator colour | black | |
| Pin number | 2 pole | |
| Protection class | IP65 | |
| Vandal-proof | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
