HE6B-M211Y | IDEC

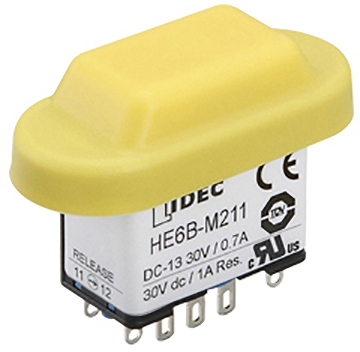

Enabling switch, 2 pole, yellow, unlit , IP65, HE6B-M211Y
Unit Price (€ / pc.)
51.4080 € *
Available: 8 pcs.
Leadtime: 13 Weeks **
Total Price:
51.41 € *
Price list
Quantity
Price per unit*
1 pcs.
51.4080 €
10 pcs.
49.3612 €
50 pcs.
48.5401 €
100 pcs.
47.7309 €
*incl. VAT plus shipping costs
**Subject to prior sale
Enabling switch, HE6B-M211Y, IDEC
3-position enabling switch with monitoring contacts. Some teach pendants are equipped with two 3-position enabling switches, and when one switch is pressed to position 3 (off), the other switch must not enable machine operation even when pressed to position 2. Enabling of machine operation must resume after both switches are released. The monitoring switches monitor the off status of 3-position enabling switch, whether the button is returned to position 1 or the button is pressed to position 3 (monitor switches have direct opening action mechanism.)
Features
- Ergonomically designed off-on-off operation
- The switch does not turn on while being released from position 3 (off) to position 1 (off)
- Two contacts are provided in a 3-position enabling switch so that even if one contact fails due to welding or short circuit, the other contact can disable machine operation
- Protection IP65
Technical specifications
| Connection | Lötanschluss | |
| Design | rechteckig | |
| illuminated | No | |
| Actuator colour | gelb | |
| Pin number | 2-polig | |
| Protection class | IP65 | |
| Vandal-proof | No |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85365011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
