AL1970 | IFM electronic
AL1970, IO-Link master CabinetLine, Number of digiinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P1346
EAN: 4021179333412
MPN:
AL1970
Unit Price (€ / pc.)
716.2015 € *
Available: 0 pcs.
Leadtime: 1 Week **

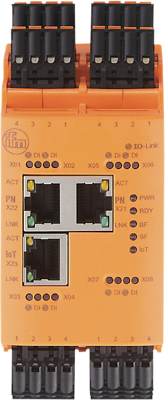

IO-Link master Cabinet Line, AL1970, IFM electronic
Features
- Separation between automation network and IT network
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With POWERLINK and separate MQTT JSON interface
- Small design requiring only very little space for control panel mounting
Technical specifications
| Anzahl der digitalen Ausgänge | 8 | |
| Anzahl der digitalen Eingänge | 8 | |
| Ausführung | IO-Link Master | |
| Breite | 50 mm | |
| Geeignet für | Einsatz im Schaltschrank | |
| Höhe | 125.7 mm | |
| Montage | DIN-Schiene | |
| Tiefe | 105.3 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85176200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
