AC1254 | IFM electronic
AC1254, Power supply, 124 x 40 x 120 mm, Output cuinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8956
EAN: 4021179273046
MPN:
AC1254
Unit Price (€ / pc.)
55,739.60 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
55,739.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
55,739.60 €

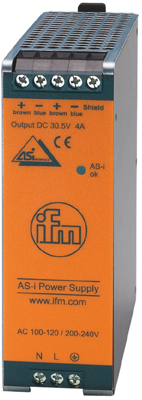

AS-Interface power supply, AC1254, IFM electronic
AS-Interface power supply, Reliably power supply for modules, sensors and actuators.
Features
- High noise immunity and sufficient power reserves for the compensation of current peaks
- Safe decoupling of interferences from the primary supply
- Particularly space-saving design
- Low heating of the control cabinet due to high efficiency
Technical specifications
| Anzahl der Ausgänge | 1 | |
| Ausgangsspannungsbereich | 30,5 V | |
| Ausgangsstrom | 4 A | |
| Breite | 40 mm | |
| Eingangsspannungsbereich | 100-120 VAC, 200-240 VAC | |
| Höhe | 130.5 mm | |
| Leistung | 122 W | |
| Schutzart (IP) | IP20 | |
| Tiefe | 124.5 mm | |
| Wirkungsgrad | 89.3 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85044083 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
