SA4104 | IFM electronic

Flow sensor, with display, analog signal, 50 bar, Ø 8 mm, stainless steel, SA4104

Order No.: 82P8164
EAN: 4021179297684
MPN:
SA4104
SA4104 IFM electronic Float Switches, Flow Sensors
Image may differ
Unit Price (€ / pc.)
523.5167 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
523.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
523.5167 €

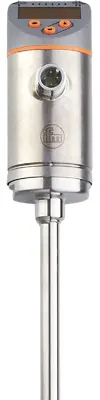

Flow sensor, SA4104, IFM electronic

Features

  • Measurement of flow and temperature at the same time
  • Optimised for water, oils and air
  • Clearly visible 4-digit LED display
  • With two scalable analogue outputs
  • The process connection can be rotated for optimum alignment
Technical specifications
Connection M12-Steckverbinder
Version mit Display, Analogsignal
Pressure 50 bar
diameter 8 mm
Shell Material Edelstahl
Medium Wasser/Öle/Glykol-Lösungen/Luft
measurement range -20-100 °C, 0,04-6 m/s, 0-200 m/s, Stablänge 100 mm
Assembly Klemmadaption Ø 8 mm
Product type Strömungssensor
Degree of protection (IP) IP65/IP67
Logistics
Country of origin DE
Customs tariff number 90261021
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
