SB6243 | IFM electronic

Flow sensor, with display, IO-Link, 100 bar, stainless steel, SB6243

Order No.: 82P8200
EAN: 4021179340441
MPN:
SB6243
SB6243 IFM electronic Float Switches, Flow Sensors
Image may differ
Unit Price (€ / pc.)
637.9114 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
637.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
637.9114 €

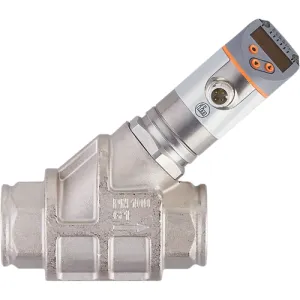

Mechatronic flow meter, SB6243, IFM electronic

Features

  • Fast flow or temperature changes do not affect the measurement
  • High measurement dynamics reduces type versions
  • No inlet and output pipe lengths required
  • Specifically adjusted to oil for optimum measurement results
Technical specifications
Anschluss M12-Steckverbinder
Ausführung mit Display, IO-Link
Druck 100 bar
Gehäusematerial Edelstahl
Medium Flüssigkeiten/Öle
Messbereich 1-25 l/min, 0,06-1,5 m³/h, 16-396,5 gph, 0,26-6,6 gpm
Montage G 1 Innengewinde
Produkt-Art Durchflusssensor
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland DE
Zolltarifnummer 85365019
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
