SB7257 | IFM electronic
Flow sensor, with display, IO-Link, 63 bar, stainless steel, SB7257
Order No.: 82P8204
EAN: 4021179318716
MPN:
SB7257
Unit Price (€ / pc.)
743.5953 € *
Available: 0 pcs.
Leadtime: 1 Week **

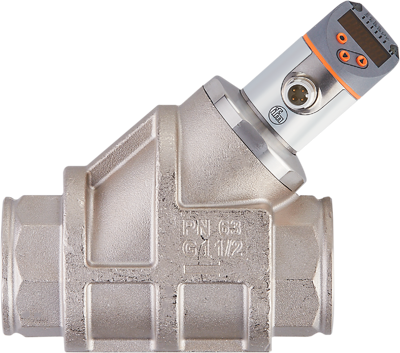

Mechatronic flow meter, SB7257, IFM electronic
Features
- Fast flow or temperature changes do not affect the measurement
- High measurement dynamics reduces type versions
- No inlet and output pipe lengths required
- Specifically adjusted to oil for optimum measurement results
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, IO-Link | |
| Druck | 63 bar | |
| Gehäusematerial | Edelstahl | |
| Medium | Flüssigkeiten/Öle | |
| Messbereich | 8-200 l/min, 0,48-12 m³/h, 130-3170 gph, 2,1-52,8 gpm | |
| Montage | G 1 1/2 Innengewinde | |
| Produkt-Art | Durchflusssensor | |
| Schaltfunktion | Schließer/Öffner | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
