SBG232 | IFM electronic

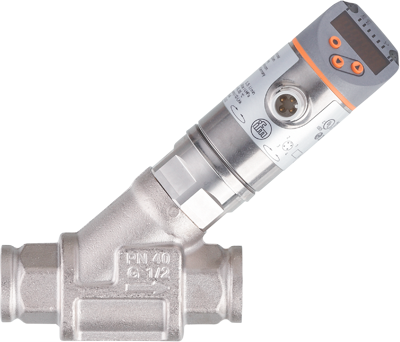

Flow sensor, with display, IO-Link, 40 bar, stainless steel, SBG232

Order No.: 82P8207
EAN: 4021179289290
MPN:
SBG232
SBG232 IFM electronic Float Switches, Flow Sensors
Image may differ
Unit Price (€ / pc.)
463.8977 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
463.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
463.8977 €

Mechatronic flow meter, SBG232, IFM electronic

Features

  • Precise detection of flow and medium temperature
  • Suitable for water, coolants, oil and glycol solutions thanks to integrated measurement graphs
  • Reliable backflow prevention with very fast response time
  • With switching output, analogue output and frequency output
  • Clearly visible LED display with red/green colour change
Technical specifications
Anschluss M12-Steckverbinder
Ausführung mit Display, IO-Link
Druck 40 bar
Gehäusematerial Edelstahl
Medium Flüssigkeiten/Wasser/Glykol-Lösungen/Kühlschmiermittel
Messbereich 0,3-15 l/min, 0,018-0,9 m³/h
Montage G 1/2 Innengewinde
Produkt-Art Durchflusssensor
Schaltfunktion Schließer/Öffner
Schutzart (IP) IP65/IP67
Logistics
Ursprungsland DE
Zolltarifnummer 85365019
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
