SBG257 | IFM electronic
SBG257, Mechatronic flow meter, switching signal,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P8211
EAN: 4021179289337
MPN:
SBG257
Unit Price (€ / pc.)
653.2148 € *
Available: 0 pcs.
Leadtime: 1 Week **

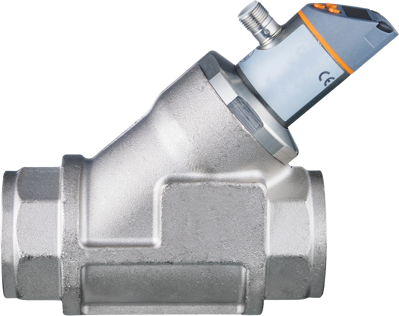

Mechatronic flow meter, SBG257, IFM electronic
Features
- Precise detection of flow and medium temperature
- Suitable for water, coolants, oil and glycol solutions thanks to integrated measurement graphs
- Reliable backflow prevention with very fast response time
- With switching output, analogue output or frequency output and IO-Link
- Clearly visible LED display with red/green colour change
Technical specifications
| Connection | M12-plug | |
| Version | 4-200 l/min, 0.24-12 m³/h | |
| Pressure | 25 bar | |
| Shell Material | stainless steel | |
| Medium | liquids/water/glycol solutions/cooling lubricants | |
| Product type | mechatronic flow sensor | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
