SBG357 | IFM electronic

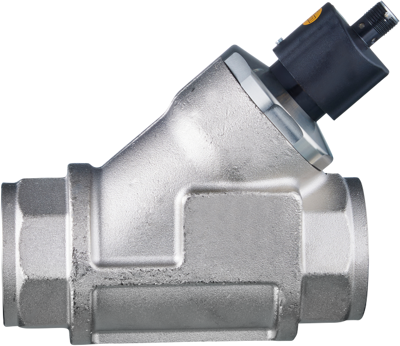

Flow monitor, PNP, 25 bar, brass/PPS/aluminum/PA, SBG357
Order No.: 82P8216
EAN: 4021179258258
MPN:
SBG357
Unit Price (€ / pc.)
615.4204 € *
Available: 0 pcs.
Leadtime: 1 Week **
Flow monitor, SBG357, IFM electronic
Features
- Precise detection of flow in pipes
- Suitable for water, oils and glycol solutions
- Reliable backflow prevention with very fast response time
- Intuitive continuous adjustment of the switch point
- Robust housing with very high pressure rating
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | PNP | |
| Pressure | 25 bar | |
| Shell Material | Messing/PPS/Aluminium/PA | |
| Medium | Flüssigkeiten/Wasser/Glykol-Lösungen/Kühlschmiermittel | |
| measurement range | 20-200 l/min | |
| Assembly | G 1 1/4 Innengewinde | |
| Product type | Strömungswächter | |
| Latching switching function | Schließer | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
