SD6501 | IFM electronic
Compressed air counter, with display, IO-Link, PNP/NPN, stainless steel/PBT+PC-GF30/FKM, SD6501
Order No.: 82P8269
EAN: 4021179314831
MPN:
SD6501
Unit Price (€ / pc.)
1,267.9926 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1,267.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1,267.9926 €

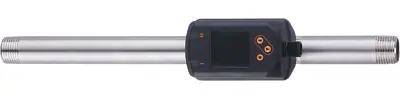

Compressed air meter, SD6501, IFM electronic
Features
- Precise measurement of flow, consumption, pressure and medium temperature
- High accuracy, repeatability and measurement dynamics
- For detecting compressed air in industrial use
- Red/green display for clear identification of the acceptable range
- Display can be rotated for optimum alignment
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, IO-Link, PNP/NPN | |
| Gehäusematerial | Edelstahl/PBT+PC-GF30/FKM | |
| Medium | Betriebsdruckluft | |
| Messbereich | 8-2648 scfh, 0,15-44,15 scfm, 1-327,4 ft/s | |
| Montage | Gewindeanschluss 1/2" NPT, Außengewinde DN15 | |
| Produkt-Art | Druckluftzähler | |
| Schaltfunktion | Schließer/Öffner | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90268020 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
