SI5002 | IFM electronic

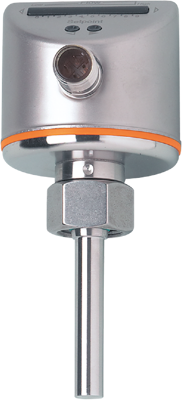

Flow monitor, with display, IO-Link, PNP, 300 bar, Ø 50 mm, stainless steel/PC/PBT-GF20/EPDM/X, SI5002
Order No.: 82P8308
EAN: 4021179212472
MPN:
SI5002
Unit Price (€ / pc.)
483.3661 € *
Available: 0 pcs.
Leadtime: 1 Week **
Flow monitor, SI5002, IFM electronic
Features
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
Technical specifications
| Anschluss | M12-Steckverbinder | |
| Ausführung | mit Display, IO-Link, PNP | |
| Druck | 300 bar | |
| Durchmesser | 50 mm | |
| Gehäusematerial | Edelstahl/PC/PBT-GF20/EPDM/X | |
| Medium | Flüssigkeiten/Gase | |
| Messbereich | 3-300 cm/s, 200-3000 cm/s, Stablänge 45 mm | |
| Montage | M18 Innengewinde | |
| Produkt-Art | Strömungswächter | |
| Schaltfunktion | Schließer/Öffner | |
| Schutzart (IP) | IP65/IP67 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
