SI5007 | IFM electronic
Flow monitor, with display, IO-Link, PNP, 300 bar, Ø 50 mm, stainless steel/PC/PBT-GF20/EPDM/X, SI5007
Order No.: 82P8312
EAN: 4021179212519
MPN:
SI5007
Unit Price (€ / pc.)
476.0476 € *
Available: 0 pcs.
Leadtime: 1 Week **

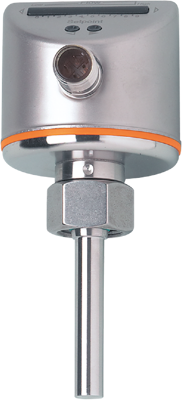

Flow monitor, SI5007, IFM electronic
Features
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | mit Display, IO-Link, PNP | |
| Pressure | 300 bar | |
| diameter | 50 mm | |
| Shell Material | Edelstahl/PC/PBT-GF20/EPDM/X | |
| Medium | Flüssigkeiten/Gase | |
| measurement range | 3-300 cm/s, 200-3000 cm/s, Stablänge 45 mm | |
| Assembly | M18 Innengewinde | |
| Product type | Strömungswächter | |
| Latching switching function | Schließer/Öffner | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
