SI6000 | IFM electronic

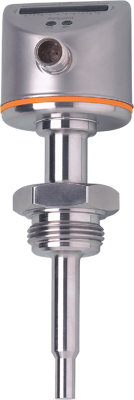

Flow monitor, with display, PNP, 30 bar, Ø 50 mm, stainless steel/PC/PBT-GF20/EPDM/X, SI6000
Order No.: 82P8317
EAN: 4021179231916
MPN:
SI6000
Unit Price (€ / pc.)
711.5843 € *
Available: 0 pcs.
Leadtime: 1 Week **
Flow monitor, SI6000, IFM electronic
Features
- Hygienic design for the requirements of the food and beverage industry
- Suitable for SIP processes up to 140 °C
- LED bar graph for indication of switch point and flow
- Extensive range of process adapters in the accessories
- Wetted parts made of stainless steel
Technical specifications
| Connection | M12-Steckverbinder | |
| Version | mit Display, PNP | |
| Pressure | 30 bar | |
| diameter | 50 mm | |
| Shell Material | Edelstahl/PC/PBT-GF20/EPDM/X | |
| measurement range | 3-300 cm/s, 200-3000 cm/s, Stablänge 55 mm | |
| Assembly | Aseptoflex | |
| Product type | Strömungswächter | |
| Latching switching function | Schließer/Öffner | |
| Degree of protection (IP) | IP67/IP69K |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
