DX2041 | IFM electronic
DX2041, Digital display, 48 x 112 x 116 mm, termininfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P1558
EAN: 4021179309233
MPN:
DX2041
Unit Price (€ / pc.)
462.9100 € *
Available: 0 pcs.
Leadtime: 1 Week **

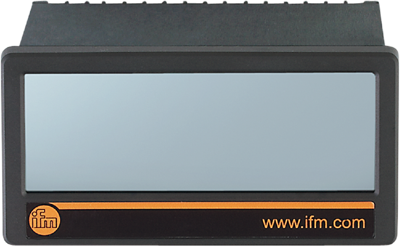

Digital display, DX2041, IFM electronic
Features
- Clearly readable colour display with touch screen
- Large AC/DC operating voltage range
- Reliable monitoring of sensors with analogue standard signals
- Freely scalable display values and signal combinations
Technical specifications
| Width of cut-out | 48 mm | |
| Installation depth | 116 mm | |
| Frequency measurement | Yes | |
| Height of cut-out | 112 mm | |
| max. Voltage | 230 V | |
| Max. current | 100 mA | |
| Assembly | built-in mounting | |
| Control Output | No | |
| Degree of protection (IP) | IP65/IP20 | |
| Voltage | 115-230 VAC/18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85285900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
