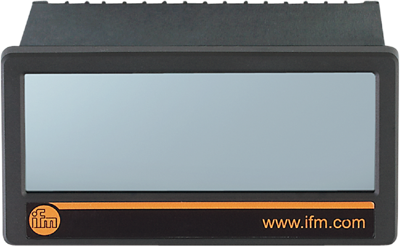

DX2052 | IFM electronic
DX2052, Digital display, 48 x 112 x 116 mm, termininfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P1563
EAN: 4021179309257
MPN:
DX2052
Unit Price (€ / pc.)
467.075 € *
Available: 0 pcs.
Leadtime: 1 Week **
Digital display, DX2052, IFM electronic
Features
- Clearly readable colour display with touch screen
- Large operating voltage range
- Reliable monitoring of sensors with analogue standard signals
- Freely scalable display values and signal combinations
- Switching outputs to reliably monitor limit values
Technical specifications
| Width of cut-out | 48 mm | |
| Installation depth | 116 mm | |
| Frequency measurement | No | |
| Height of cut-out | 112 mm | |
| max. Voltage | 30 V | |
| Max. current | 100 mA | |
| Assembly | built-in mounting | |
| Control Output | No | |
| Degree of protection (IP) | IP65/IP20 | |
| Voltage | 18-30 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90292038 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
