O5H504 | IFM electronic
O5H504, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6811
EAN: 4021179246903
MPN:
O5H504
Unit Price (€ / pc.)
271.5937 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
271.59 € *
Price list
Quantity
Price per unit*
1 pcs.
271.5937 €
3 pcs.
264.4775 €
*incl. VAT plus shipping costs
**Subject to prior sale

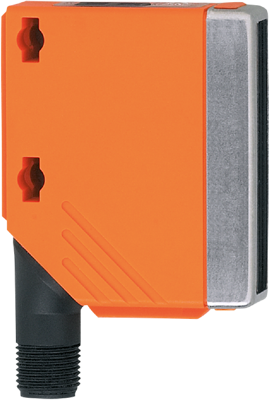

Diffuse reflection sensor, O5H504, IFM electronic
Features
- Very long range
- Precise background suppression
- Sensitivity adjustable via teach buttons
- Robust housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 50-1800 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-36 VDC | |
| Power supply | 25 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
