O6E210 | IFM electronic
O6E210, Through-beam sensor, red light, complementinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6835
EAN: 4021179302531
MPN:
O6E210
Unit Price (€ / pc.)
89.2857 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
89.29 € *
Price list
Quantity
Price per unit*
1 pcs.
89.2857 €
3 pcs.
85.4182 €
5 pcs.
81.8720 €
*incl. VAT plus shipping costs
**Subject to prior sale

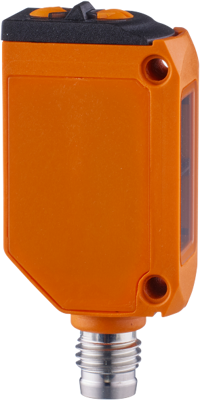

Through-beam sensor, O6E210, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Very long range independent of the object colour
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
Technical specifications
| Connection | M8-connector | |
| Version | one way light barrier | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 10 m | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 7 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
