O6E305 | IFM electronic
O6E305, Through-beam sensor, red light, light-on/dinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6843
EAN: 4021179273831
MPN:
O6E305
Unit Price (€ / pc.)
131.3403 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
131.34 € *
Price list
Quantity
Price per unit*
1 pcs.
131.3403 €
3 pcs.
127.6989 €
5 pcs.
124.2717 €
*incl. VAT plus shipping costs
**Subject to prior sale

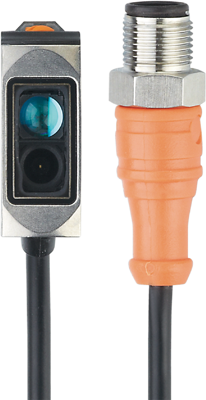

Through-beam sensor, O6E305, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object colour
- Intuitive setting of sensitivity and output function
Technical specifications
| Connection | M12-connector | |
| Version | one way light barrier | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 10 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Voltage | 10-30 VDC | |
| Power supply | 7 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
