O6E703 | IFM electronic
O6E703, Through-beam sensor, red light, light-on/dinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6856
EAN: 4021179313896
MPN:
O6E703
Unit Price (€ / pc.)
138.5160 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
138.52 € *
Price list
Quantity
Price per unit*
1 pcs.
138.5160 €
3 pcs.
134.6842 €
5 pcs.
131.0547 €
*incl. VAT plus shipping costs
**Subject to prior sale

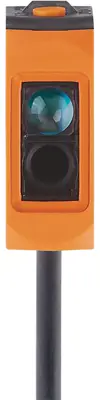

Through-beam sensor, O6E703, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Very long range independent of the object colour
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
Technical specifications
| Connection | cable connection | |
| Version | one way light barrier | |
| Output | NPN | |
| Detecting distance | 15 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 13 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
