O6H204 | IFM electronic
O6H204, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6863
EAN: 4021179279451
MPN:
O6H204
Unit Price (€ / pc.)
151.5227 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
151.52 € *
Price list
Quantity
Price per unit*
1 pcs.
151.5227 €
3 pcs.
147.3220 €
5 pcs.
143.3593 €
*incl. VAT plus shipping costs
**Subject to prior sale

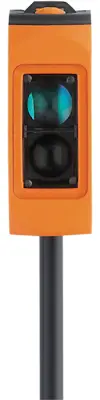

Diffuse reflection sensor, O6H204, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Particularly interference-immune background suppression even with strongly reflecting backgrounds
- Excellent price/performance ratio
Technical specifications
| Connection | cable connection | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Detecting distance | 2-200 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 22 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
