O6P310 | IFM electronic
O6P310, Retro-reflective sensor, red light, compleinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6915
EAN: 4021179285827
MPN:
O6P310
Unit Price (€ / pc.)
181.4393 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
181.44 € *
Price list
Quantity
Price per unit*
1 pcs.
181.4393 €
3 pcs.
176.6793 €
*incl. VAT plus shipping costs
**Subject to prior sale

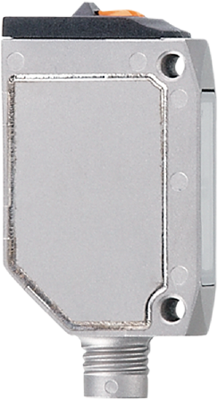

Retro-reflective sensor, O6P310, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object colour
- Intuitive setting of the sensitivity via potentiometer
Technical specifications
| Connection | M8-connector | |
| Version | reflecting light barrier | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 0.05-5 m | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Voltage | 10-30 VDC | |
| Power supply | 12 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
