O6P401 | IFM electronic
O6P401, Retro-reflective sensor, red light, light-infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6917
EAN: 4021179294010
MPN:
O6P401
Unit Price (€ / pc.)
179.1783 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
179.18 € *
Price list
Quantity
Price per unit*
1 pcs.
179.1783 €
3 pcs.
174.4778 €
*incl. VAT plus shipping costs
**Subject to prior sale

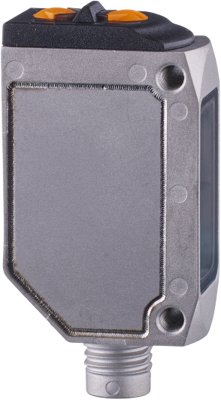

Retro-reflective sensor, O6P401, IFM electronic
Features
- Robust stainless steel housing for use in metalworking and in the automotive industry
- Resistant to oils and coolants
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object colour
- Intuitive setting of sensitivity and output function
Technical specifications
| Connection | M8-connector | |
| Version | reflecting light barrier | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 0.05-5 m | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67/IP68 | |
| Voltage | 10-30 VDC | |
| Power supply | 12 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
