O6T201 | IFM electronic

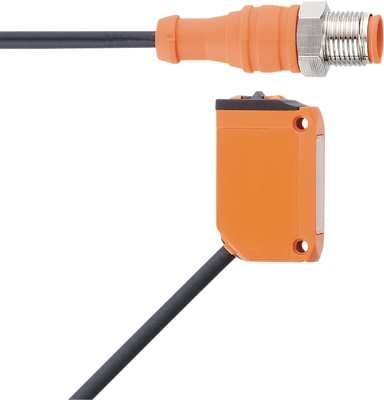

O6T201, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6945
EAN: 4021179279628
MPN:
O6T201
Unit Price (€ / pc.)
132.2328 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
132.23 € *
Price list
Quantity
Price per unit*
1 pcs.
132.2328 €
3 pcs.
128.5676 €
5 pcs.
125.1166 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diffuse reflection sensor, O6T201, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Intuitive setting of the range via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Excellent price/performance ratio
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 5-500 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 16 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
