O7H201 | IFM electronic
O7H201, Diffuse reflection sensor, red light, darkinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6976
EAN: 4021179256025
MPN:
O7H201
Unit Price (€ / pc.)
173.0855 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
173.09 € *
Price list
Quantity
Price per unit*
1 pcs.
173.0855 €
3 pcs.
168.5516 €
*incl. VAT plus shipping costs
**Subject to prior sale

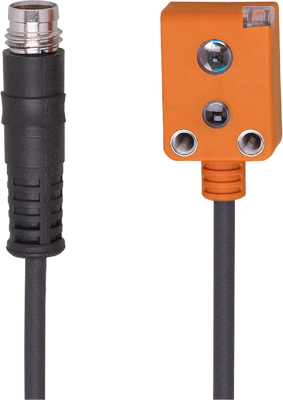

Diffuse reflection sensor, O7H201, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Precise background suppression
- Simple alignment due to visible red light
Technical specifications
| Connection | M8-connector | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 5-30 mm | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP65 | |
| Voltage | 10-30 VDC | |
| Power supply | 20 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
