O8E205 | IFM electronic
O8E205, Through-beam sensor, red light, dark-on moinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P6997
EAN: 4021179305181
MPN:
O8E205
Unit Price (€ / pc.)
113.3832 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
113.38 € *
Price list
Quantity
Price per unit*
1 pcs.
113.3832 €
3 pcs.
110.2416 €
5 pcs.
107.2785 €
*incl. VAT plus shipping costs
**Subject to prior sale

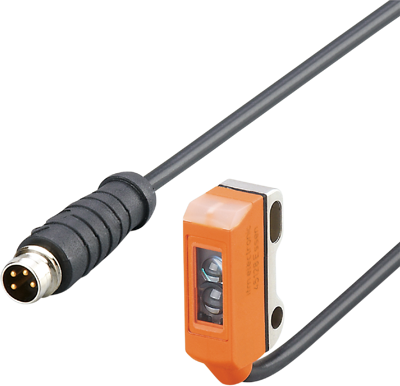

Through-beam sensor, O8E205, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Ready for operation immediately thanks to fixed setting
- Very long range
Technical specifications
| Connection | M8-connector | |
| Version | one way light barrier | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 3 m | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 15 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
