O8P203 | IFM electronic
O8P203, Retro-reflective sensor, red light, dark-oinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7029
EAN: 4021179305105
MPN:
O8P203
Unit Price (€ / pc.)
139.5513 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
139.55 € *
Price list
Quantity
Price per unit*
1 pcs.
139.5513 €
3 pcs.
135.6957 €
5 pcs.
132.0424 €
*incl. VAT plus shipping costs
**Subject to prior sale

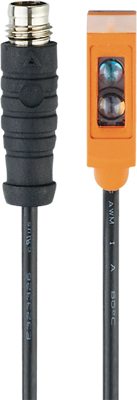

Retro-reflective sensor, O8P203, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Ready for operation immediately thanks to fixed setting
- Very long range
Technical specifications
| Connection | M8-connector | |
| Version | reflecting light barrier | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 0.02-1.8 m | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 20 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
