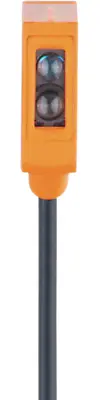

O8T201 | IFM electronic
O8T201, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7036
EAN: 4021179305235
MPN:
O8T201
Unit Price (€ / pc.)
135.6600 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
135.66 € *
Price list
Quantity
Price per unit*
1 pcs.
135.6600 €
3 pcs.
131.9115 €
5 pcs.
128.3653 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diffuse reflection sensor, O8T201, IFM electronic
Features
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Ready for operation immediately thanks to fixed setting
- Very long range
Technical specifications
| Connection | cable connection | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Detecting distance | 180 mm | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP65/IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 20 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
