OF5060 | IFM electronic
OF5060, Diffuse reflection sensor, infrared light,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7079
EAN: 4021179172950
MPN:
OF5060
Unit Price (€ / pc.)
223.7557 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
223.76 € *
Price list
Quantity
Price per unit*
1 pcs.
223.7557 €
3 pcs.
217.8890 €
*incl. VAT plus shipping costs
**Subject to prior sale

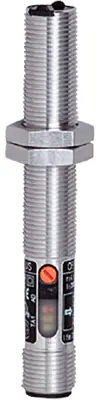

Diffuse reflection sensor, OF5060, IFM electronic
Features
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- With very focussed light beam
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 1-400 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65 | |
| Voltage | 10-36 VDC | |
| Power supply | 35 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
