OGE101 | IFM electronic
OGE101, Through-beam sensor, red light, light-on minfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7119
EAN: 4021179246880
MPN:
OGE101
Unit Price (€ / pc.)
85.7990 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
85.80 € *
Price list
Quantity
Price per unit*
1 pcs.
85.7990 €
3 pcs.
82.0862 €
5 pcs.
78.6828 €
*incl. VAT plus shipping costs
**Subject to prior sale

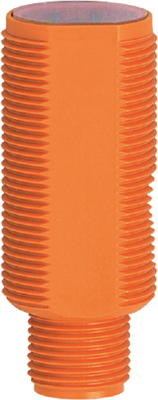

Through-beam sensor, OGE101, IFM electronic
Features
- Very long range
- For use in conveying and materials handling
- Ready for operation immediately thanks to fixed setting
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
Technical specifications
| Connection | M12-connector | |
| Version | one way light barrier | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 8 m | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 8 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
