OGE382 | IFM electronic
OGE382, Through-beam sensor, red light, dark-on moinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7131
EAN: 4021179267236
MPN:
OGE382
Unit Price (€ / pc.)
156.1637 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
156.16 € *
Price list
Quantity
Price per unit*
1 pcs.
156.1637 €
3 pcs.
151.8440 €
5 pcs.
147.7623 €
*incl. VAT plus shipping costs
**Subject to prior sale

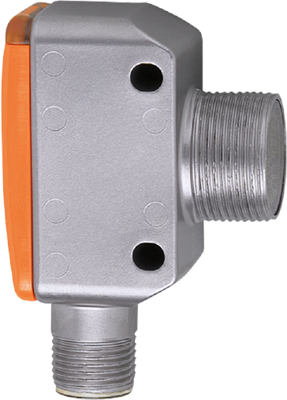

Through-beam sensor, OGE382, IFM electronic
Features
- Robust rectangular stainless steel housing with M18 thread on the side
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of the food and beverage industry
- Ready for operation immediately thanks to fixed setting
- Very long range
Technical specifications
| Connection | M12-connector | |
| Version | one way light barrier | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 15 m | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Voltage | 10-30 VDC | |
| Power supply | 16 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
