OGH382 | IFM electronic
OGH382, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7156
EAN: 4021179267281
MPN:
OGH382
Unit Price (€ / pc.)
190.9236 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
190.92 € *
Price list
Quantity
Price per unit*
1 pcs.
190.9236 €
3 pcs.
185.9256 €
*incl. VAT plus shipping costs
**Subject to prior sale

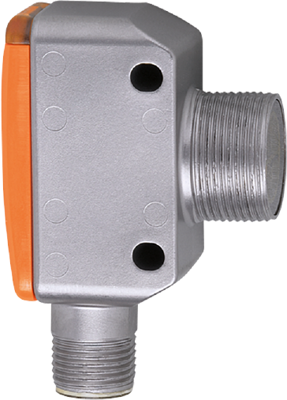

Diffuse reflection sensor, OGH382, IFM electronic
Features
- Robust rectangular stainless steel housing with M18 thread on the side
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of the food and beverage industry
- Ready for operation immediately thanks to fixed setting
- Precise background suppression
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 100 mm | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Voltage | 10-30 VDC | |
| Power supply | 25 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
