OGT102 | IFM electronic
OGT102, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7195
EAN: 4021179256353
MPN:
OGT102
Unit Price (€ / pc.)
98.1155 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
98.12 € *
Price list
Quantity
Price per unit*
1 pcs.
98.1155 €
3 pcs.
95.4023 €
5 pcs.
92.8319 €
*incl. VAT plus shipping costs
**Subject to prior sale

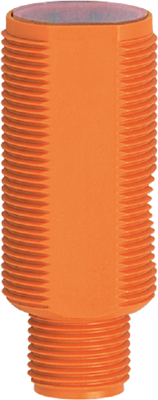

Diffuse reflection sensor, OGT102, IFM electronic
Features
- Very long range
- For use in conveying and materials handling
- Intuitive setting of the sensitivity via potentiometer
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | NPN | |
| Design | A | |
| Detecting distance | 10-400 mm | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP65 | |
| Voltage | 10-30 VDC | |
| Power supply | 20 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
