OGT302 | IFM electronic
OGT302, Diffuse reflection sensor, infrared light,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7200
EAN: 4021179268622
MPN:
OGT302
Unit Price (€ / pc.)
181.4393 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
181.44 € *
Price list
Quantity
Price per unit*
1 pcs.
181.4393 €
3 pcs.
176.6793 €
*incl. VAT plus shipping costs
**Subject to prior sale

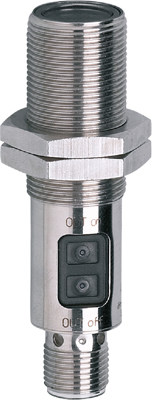

Diffuse reflection sensor, OGT302, IFM electronic
Features
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Intuitive setting of sensitivity and output function
- Very long range
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 2-800 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP65/IP67/IP68/IP69K | |
| Voltage | 10-36 VDC | |
| Power supply | 25 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
