OJ5044 | IFM electronic
OJ5044, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7247
EAN: 4021179175876
MPN:
OJ5044
Unit Price (€ / pc.)
199.7058 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
199.71 € *
Price list
Quantity
Price per unit*
1 pcs.
199.7058 €
3 pcs.
194.4698 €
*incl. VAT plus shipping costs
**Subject to prior sale

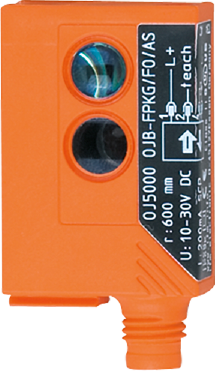

Diffuse reflection sensor, OJ5044, IFM electronic
Features
- Particularly compact housing for use in robotics, assembly and handling technology
- Precise background suppression
- Simple alignment due to visible red light
- Intuitive setting of sensitivity and output function
- Easy mounting by clipping onto a mounting base
Technical specifications
| Connection | M8-connector | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 15-400 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 25 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
