OJ5061 | IFM electronic

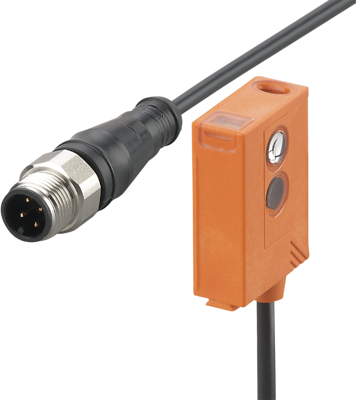

OJ5061, Diffuse reflection sensor, red light, lighinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7254
EAN: 4021179176040
MPN:
OJ5061
Unit Price (€ / pc.)
223.4820 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
223.48 € *
Price list
Quantity
Price per unit*
1 pcs.
223.4820 €
3 pcs.
217.6272 €
*incl. VAT plus shipping costs
**Subject to prior sale
Diffuse reflection sensor, OJ5061, IFM electronic
Features
- Particularly compact housing for use where space is restricted
- Very long range
- Simple alignment due to visible red light
- Intuitive setting of sensitivity and output function
- Easy mounting by clipping onto a mounting base
Technical specifications
| Connection | M12-connector | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 1-600 mm | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 22 mA |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
