OPL204 | IFM electronic
OPL204, Photoelectric angle sensor, 65 x 10 x 106infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7319
EAN: 4021179256391
MPN:
OPL204
Unit Price (€ / pc.)
380.0979 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
380.10 € *
Price list
Quantity
Price per unit*
1 pcs.
380.0979 €
3 pcs.
370.5065 €
*incl. VAT plus shipping costs
**Subject to prior sale

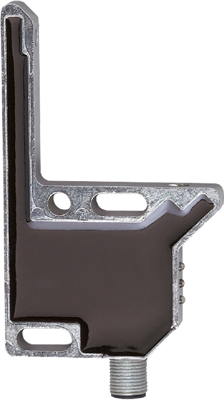

Photoelectric angle sensor, OPL204, IFM electronic
Features
- Quick set-up: no need to align transmitter and receiver
- Fine and precise light beam across the whole fork width
- Metal housing reduces distortion
- Light-on/dark-on mode selectable via rotary switch
- Intuitive setting of the sensitivity via potentiometer
Technical specifications
| Connection | M12-connector | |
| Version | angle light barrier | |
| Output | PNP | |
| Design | A | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-35 VDC | |
| Power supply | 45 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
