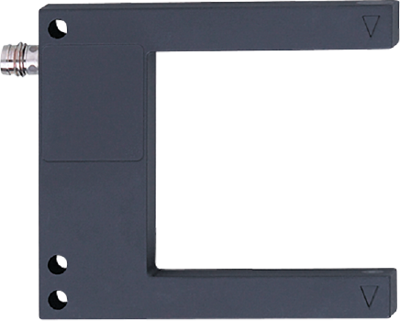

OPU203 | IFM electronic
OPU203, Photoelectric fork sensor, 70 x 10 x 80 mminfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7324
EAN: 4021179243209
MPN:
OPU203
Unit Price (€ / pc.)
326.6312 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
326.63 € *
Price list
Quantity
Price per unit*
1 pcs.
326.6312 €
3 pcs.
318.3964 €
*incl. VAT plus shipping costs
**Subject to prior sale
Photoelectric fork sensor, OPU203, IFM electronic
Features
- Quick set-up: no need to align transmitter and receiver
- Fine and precise light beam across the whole fork width
- Metal housing reduces distortion
- Light-on/dark-on mode selectable via rotary switch
- Intuitive setting of the sensitivity via potentiometer
Technical specifications
| Connection | M8-connector | |
| Version | fork light barrier | |
| Output | PNP | |
| Design | A | |
| Switching logic | light ON/dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-30 VDC | |
| Power supply | 30 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
