OU5018 | IFM electronic
OU5018, Diffuse reflection sensor, infrared light,infrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7349
EAN: 4021179180269
MPN:
OU5018
Unit Price (€ / pc.)
339.2571 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
339.26 € *
Price list
Quantity
Price per unit*
1 pcs.
339.2571 €
3 pcs.
330.7010 €
*incl. VAT plus shipping costs
**Subject to prior sale

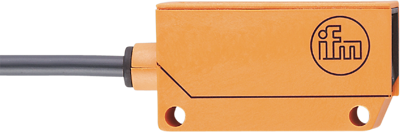

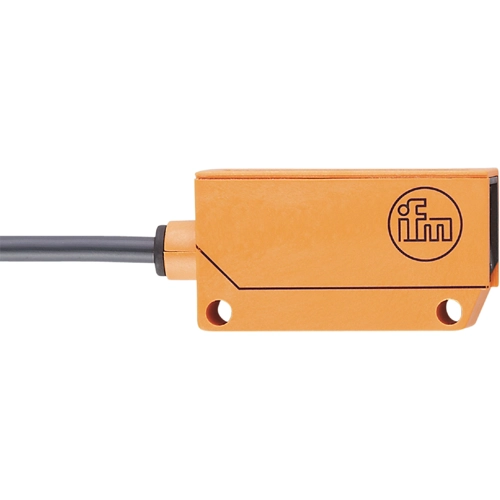

Diffuse reflection sensor, OU5018, IFM electronic
Features
- Compact housing for use where space is restricted
- Intuitive setting of the sensitivity via potentiometer
- Clearly visible indication of the switching status
- Large operating voltage range
Technical specifications
| Connection | cable connection | |
| Version | Reflexlichttaster | |
| Output | PNP | |
| Detecting distance | 1-200 mm | |
| Switching logic | light ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-55 VDC | |
| Power supply | 35 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
