OU5064 | IFM electronic
OU5064, Retro-reflective sensor, red light, dark-oinfrared light, Lens type standard, (28 x 21)...(
Order No.: 82P7360
EAN: 4021179180726
MPN:
OU5064
Unit Price (€ / pc.)
340.0901 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
340.09 € *
Price list
Quantity
Price per unit*
1 pcs.
340.0901 €
3 pcs.
331.5221 €
*incl. VAT plus shipping costs
**Subject to prior sale

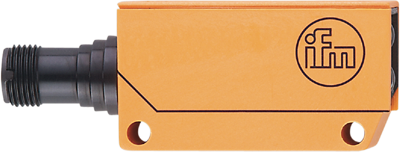

Retro-reflective sensor, OU5064, IFM electronic
Features
- Compact housing for use where space is restricted
- Intuitive setting of the sensitivity via potentiometer
- Clearly visible indication of the switching status
- Large operating voltage range
- With polarisation filter
Technical specifications
| Connection | M12-connector | |
| Version | reflecting light barrier | |
| Output | PNP | |
| Design | A | |
| Detecting distance | 0.15-1.5 m | |
| Switching logic | dark ON | |
| Degree of protection (IP) | IP67 | |
| Voltage | 10-55 VDC | |
| Power supply | 30 mA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
