OY421S | IFM electronic
Safety light grid, PNP, 24 VDC, cable, PVC 10x0.34 mm², 15 m, IP65/IP67/IP69K, OY421S
Order No.: 82P7508
EAN: 4021179257077
MPN:
OY421S
Unit Price (€ / pc.)
2,885.6072 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2,885.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,885.6072 €

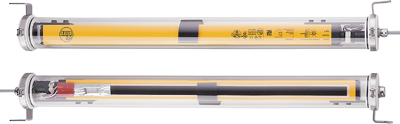

Safety light grid, OY421S, IFM electronic
Features
- High protection rating for the requirements of the food and beverage industry
- Resistant to steam and high-pressure cleaning thanks to protective tube
- Reliable protection of hazardous areas and gates
- Complies with the requirements of type 4 to IEC 61496
- Wide range selectable on the unit
Technical specifications
| Anschluss | Kabel, PVC 10x0,34 mm², 15 m | |
| Ansprechzeit | 2.5 ms | |
| Ausführung | Schutzfeldhöhe 510 mm, Strahlenanzahl 2 | |
| Ausgang | PNP | |
| Produkt-Art | Sicherheitslichtgitter | |
| Schutzart (IP) | IP65/IP67/IP69K | |
| Spannung | 24 VDC |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85365019 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
